M-HC225
Data:
Versions: 13 different intensification factors
PIN: 20 – 207 bar
PH: 800 bar maximum
Q: Up to 40 l/min
PRETURN: As low as possible (return pressure to tank)
POUTLET: PH = (PIN – PRETURN) x intensification factor
Weight: 5.7 kg.
Description

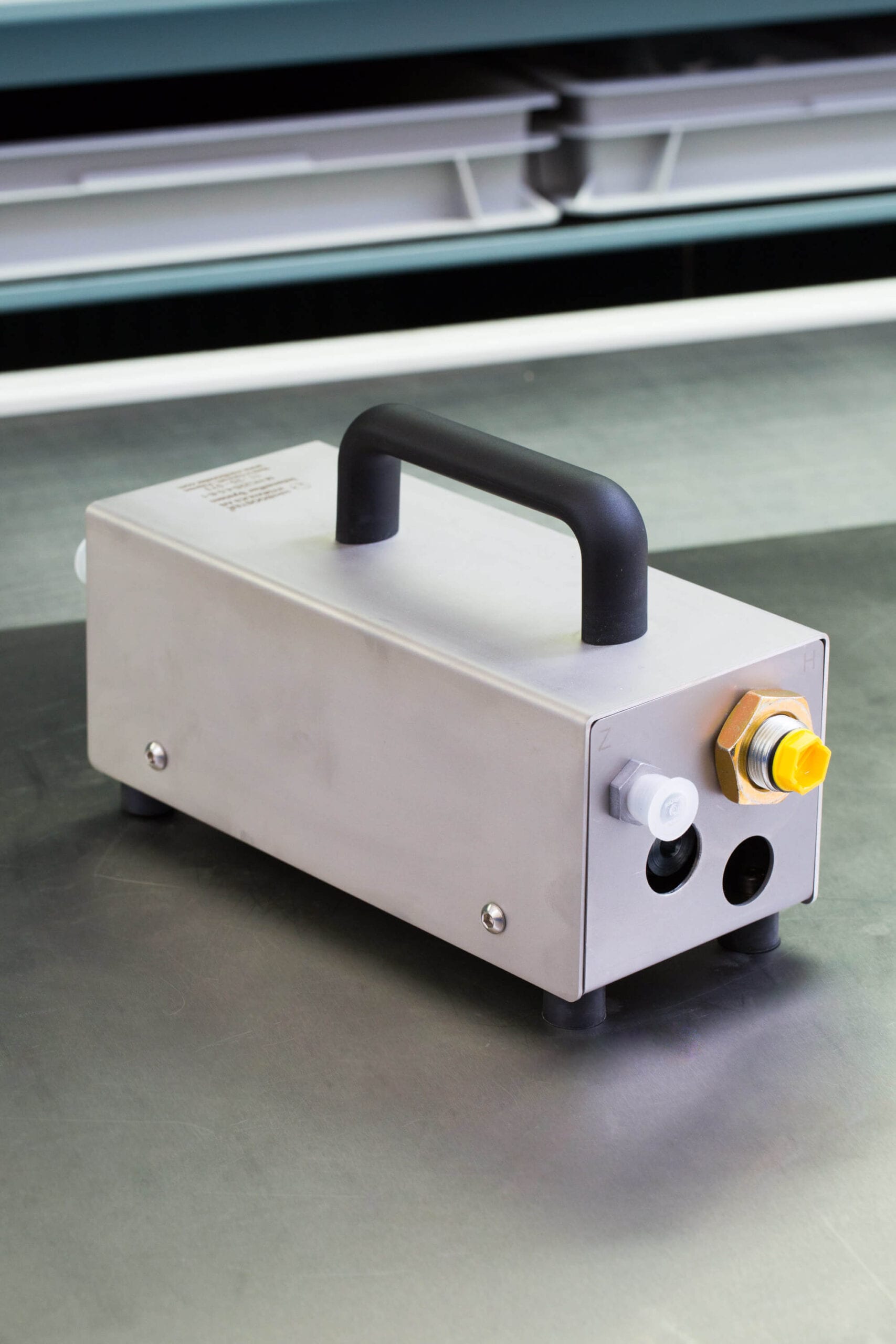

The M-HC225 is a compact field unit weighing only 5.7 kg. It is ideal for use in a variety of applications where building and maintaining high pressure is required.
The M-HC225 incorporates a Pressure Reducing Valve (PRV) to control inlet pressure to the booster section, and an optional orifice to reduce inlet flow to the maximum allowed for the intensification ratio selected.
The integrated Pressure Reducing Valve (PRV) protects both booster and high-pressure tool against too high pressure. It secures a stable high pressure regardless of changes in the tank line pressure.
The M-HC225 also incorporates a counterbalance valve, which allows fast-forward movement of a cylinder by directing the full inlet flow to pass directly through the booster section until the set pressure has been reached. Then the counterbalance valve opens, and the booster starts oscillating.
The M-HC225 booster will automatically stall when the high-pressure side H is reached. The booster will continuously compensate for oil consumption to maintain the high pressure. Adjustment of the outlet pressure is carried out by varying the supplied pressure.
An optional orifice can be mounted in the booster to reduce inlet flow to the maximum allowed for the intensification ratio selected.
Functions
The basic operation is illustrated in the function diagram. Oil is fed through the directional valve (in the customer system) to the IN port, flowing freely through the internal check valves to the high-pressure side H.
When pump pressure is reached on the high-pressure side H, the internal check valves will close. The end pressure will be achieved by the oscillating pump unit OP. The unit will automatically stall when the high-pressure side H is reached. If a pressure drop on the high-pressure side exists due to consumption or leakage, the OP valve will automatically operate to maintain the end pressure.

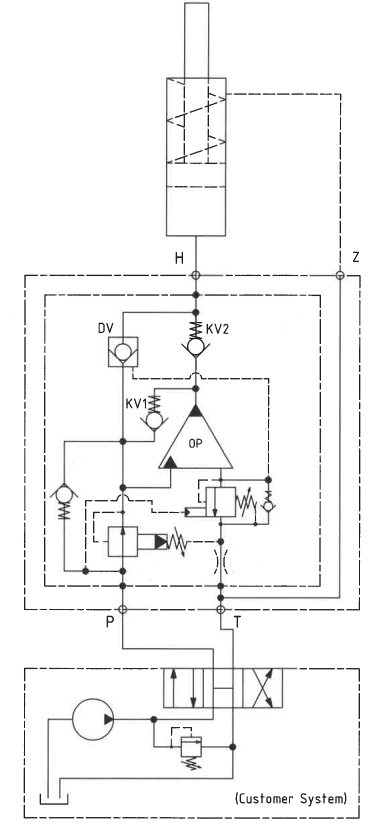

Function diagram
107-02
Dimensions
Dimension drawing M-HC225-01
Connection types
| Connection | P / T / Z | H |
|---|---|---|
| 1 | M14 x 1.5 with 24° cone | 1/4" BSPP |
Fluids and materials
Additional information is available on the website under Products → General specifications.
Ordering an M-HC225
Ordering example of an M-HC225 with i = 4.0, DV incorporated and BSPP connections:
M-HC225 – 4.0 – B – 1
Model
- M-HC225
Intensification, i
- Select factor
- See table below
Model version
- Model version
- A = without DV
- B = with DV
Connections
- Select thread
- 1 = BSPP
Selection of intensification factor
| Model | Intensification, i | Model version | Connection |
|---|---|---|---|
| M-HC225 | 1.2 | A or B | 1 |
| M-HC225 | 1.5 | A or B | 1 |
| M-HC225 | 2.0 | A or B | 1 |
| M-HC225 | 2.2 | A or B | 1 |
| M-HC225 | 2.5 | A or B | 1 |
| M-HC225 | 2.8 | A or B | 1 |
| M-HC225 | 3.2 | A or B | 1 |
| M-HC225 | 4.0 | A or B | 1 |
| M-HC225 | 5.0 | A or B | 1 |
| M-HC225 | 6.6 | A or B | 1 |
| M-HC225 | 9.0 | A or B | 1 |
| M-HC225 | 13.0 | A or B | 1 |
| M-HC225 | 20.0 | A or B | 1 |
Max. tightening torque
| P / T / Z | H | |
|---|---|---|
| M14 x 1.5 | 1/4" BSPP | |
| with steel washer | 4.0 da/Nm | 4.0 da/Nm |
| with cutting edge | 4.0 da/Nm | 4.0 da/Nm |
