HC9D2W
Data:
HC9D2W versions: 5 different intensification factors
PIN: 20 – 207 bar
PH: 1,380 bar maximum
PRETURN: As low as possible (return pressure to tank)
POUTLET: PH = (PIN – PRETURN) x intensification factor
Drain connections: Max. 10 bar
Mounting: Inline tube
Weight: 25.0 kg.
Description
The HC9D2W is a dual media miniBOOSTER stainless steel 316L unit which is capable of delivering up to 6.5 l/min flow on the high pressure end. Like other miniBOOSTER models, the HC9D2W raises supplied pressure to a higher outlet pressure and automatically compensates for consumption of oil to maintain the high pressure.
Adjustment of the outlet pressure is carried out by varying the supplied pressure. Relative to its flow capability, the HC9D2W is a compact unit weighing 25 kg.
Flow rates
| Intensification factor i | Max. intensified outlet flow l/min | Max. inlet flow l/min |
|---|---|---|
| 5.2 | 6.5 | 45.0 |
| 7.1 | 4.8 | 45.0 |
| 10.1 | 3.4 | 45.0 |
| 12.2 | 2.8 | 45.0 |
| 15.0 | 2.4 | 45.0 |
Functions
The basic operation is illustrated in the function diagram. Media 1 is fed through the IN port flowing freely through the bistable valve BV1 driving the LP pistons. From the suction inlet IN Media 2 is drawn through the check valves 2 x KV1, and pumped through the 2 x KV2 to the high-pressure side H. In this condition maximum flow through the booster is achieved giving a fast-forward function.
The unit will automatically stall when end pressure on high-pressure side H is reached. If a pressure drop on the high-pressure side exists due to consumption or leakage, the HP1 and HP2 units will automatically operate to maintain the end pressure.

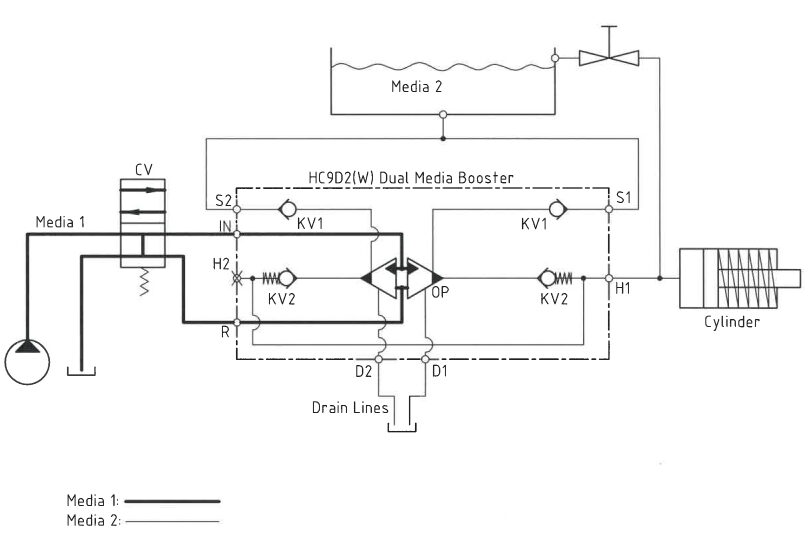

Function diagram
9D2W-105-03
Dimensions
Dimension drawing 9D2W-120-06
Connection types
| Connection | IN / R | H1 / H2 | S1 / S2 | D1 / D2 |
|---|---|---|---|---|
| 1 | 1/2" BSPP | M30 x 1.5 | 1/2" BSPP | 1/8" BSPP |
High-pressure adapters
High-pressure adapter ordering codes and specifications are shown in the PDF-file: 6DW-900-02
Dynamic seals
| Code | Seal material media 1 / 2 | Outlet pressure |
|---|---|---|
| HH | H-PUR / H-PUR | Max 1,380 bar HP |
| HP | H-PUR / PEEK | Max 1,380 bar HP |
| EE | EPDM / EPDM | Max 500 bar HP |
| EP | EPDM / PEEK | Max 1,380 bar HP |
Fluids and materials
Additional information is available on the website under Products → General specifications.
Ordering an HC9D2W
Ordering example of an HC9D2W with i = 7.1, with BSPP connections and H-PUR seals:
HC9D2W – 7.1 – A – 1HH
Attention note!
High-pressure adapter is required, please specify ordering code – see high-pressure adapter table.
High-pressure adapters will be factory mounted.
Model
- HC9D2W
Intensification, i
- Select factor
- See flow rate table
Model version
- Select type
- A = without DV
Connections
- Select thread
- 1 = BSPP
Dynamic seals
- Select seal type
- See dynamic seal table
Max. tightening torque BSPP
| IN / R | S1 / S2 | D1 / D2 | |
|---|---|---|---|
| 1/2" BSPP | 1/2" BSPP | 1/8" BSPP | |
| with stainless steel washer | 13.0 da/Nm | 13.0 da/Nm | 2.0 da/Nm |
