HC45H
Data:
HC45H versions: 8 different intensification factors
PIN: 20 – 207 bar
PH: 3,000 bar maximum
PRETURN: As low as possible (return pressure to tank)
POUTLET: PH = (PIN – PRETURN) x intensification factor
Mounting: Inline tube
Weight: 6.0 kg.
Description

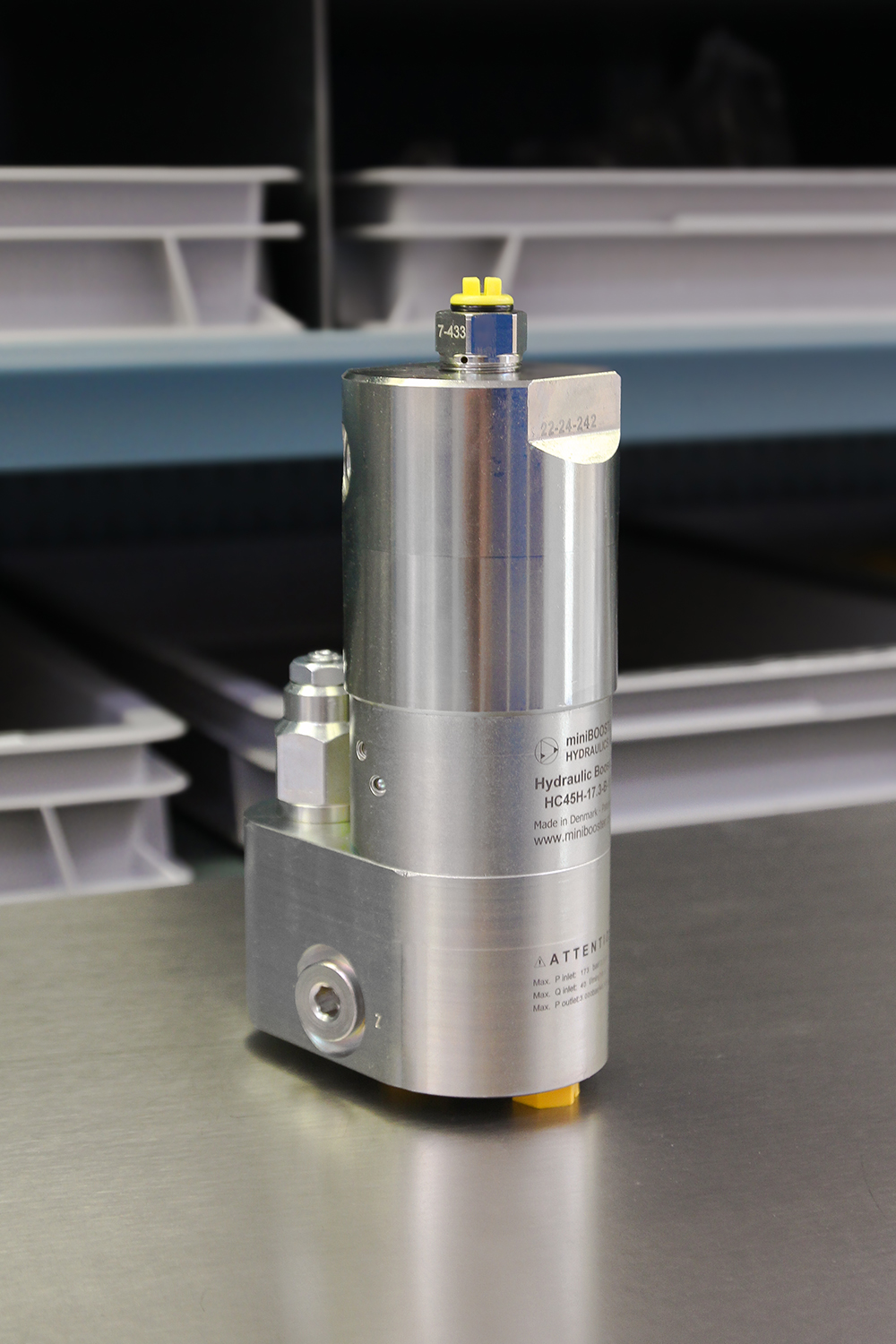

The HC45H is a compact unit weighing only 6.0 kg. It is ideal for use in a variety of applications where building and maintaining high pressure is required.
The HC45H incorporates a counterbalance valve, which allows fast-forward movement of a cylinder by directing the full inlet flow to pass directly through the booster section until the set pressure has been reached. Then the counterbalance valve opens, and the booster starts oscillating.
The HC45H booster will automatically stall when the high-pressure side H is reached. The booster will continuously compensate for oil consumption to maintain the high pressure. Adjustment of the outlet pressure is carried out by varying the supplied pressure.
An optional orifice can be mounted in the R-port of the booster to prevent overspeeding.
Flow rates
| Intensification factor i | Max. intensified outlet flow l/min | Max. inlet flow l/min |
|---|---|---|
| 5.1 | 4.1 | 40.0 |
| 6.3 | 3.4 | 40.0 |
| 7.7 | 2.8 | 40.0 |
| 9.8 | 2.2 | 40.0 |
| 12.7 | 1.6 | 40.0 |
| 16.0 | 1.3 | 40.0 |
| 17.3 | 1.2 | 40.0 |
| 25.0 | 0.8 | 40.0 |
Functions
The basic operation is illustrated in the function diagram. Oil is fed through the directional valve (in the customer system) to the IN port, flowing freely through the internal check valves to the high-pressure side H.
When pump pressure is reached on the high-pressure side H, the internal check valves will close. The end pressure will be achieved by the oscillating pump unit OP. The unit will automatically stall when the high-pressure side H is reached. If a pressure drop on the high-pressure side exists due to consumption or leakage, the OP valve will automatically operate to maintain the end pressure.

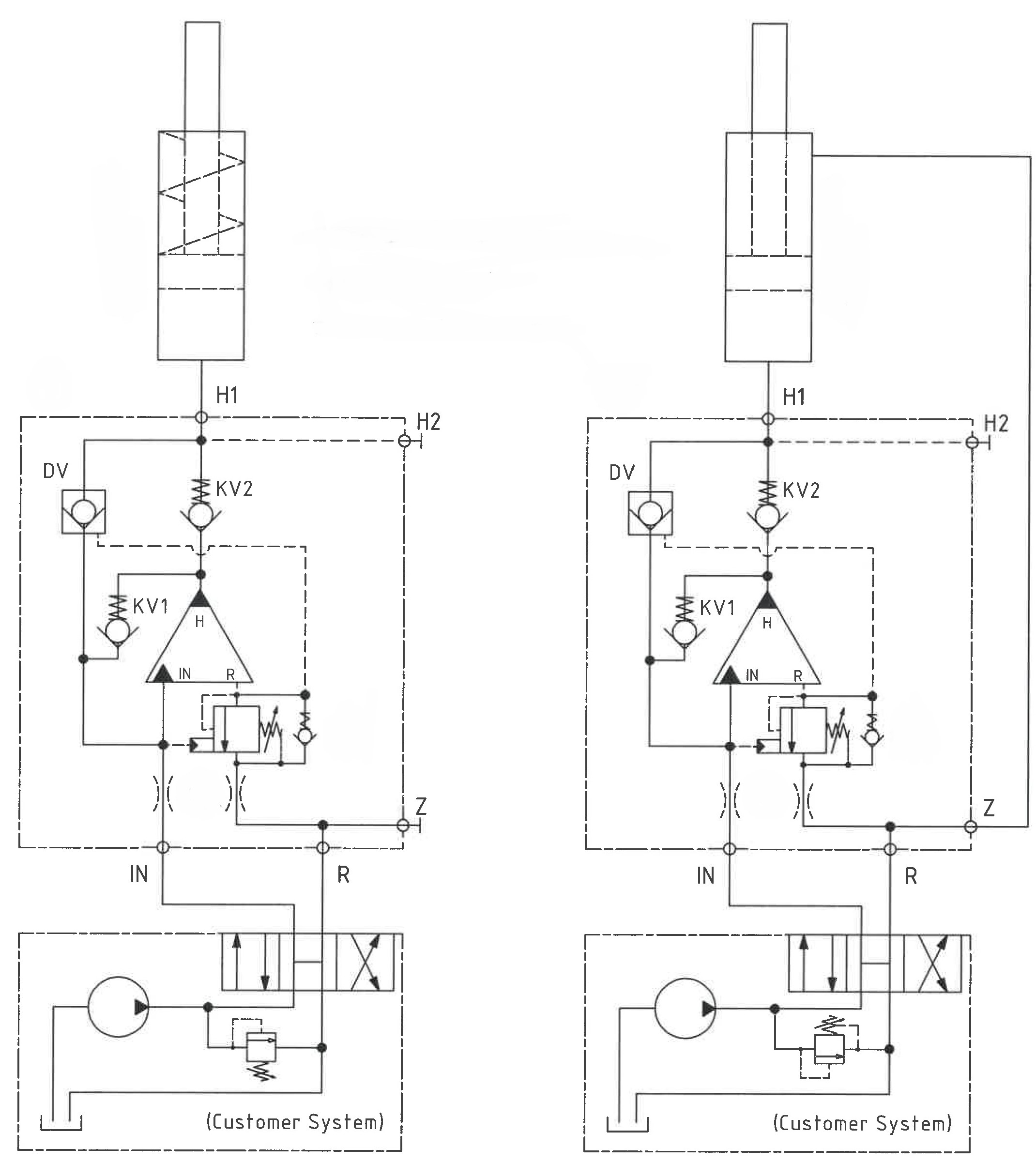

Function diagram
0-426-00
Dimensions
Dimension drawing 4-166-01
Connection types
| Connection | IN / R | H1 | H2 |
|---|---|---|---|
| 1 | 3/8" BSPP | M22 x 1.5 | 3/4-16 UNF |
High-pressure adapters
High-pressure adapter ordering codes and specifications are shown in the PDF-file: 7-900-13
Fluids and materials
Additional information is available on the website under Products → General specifications.
Ordering an HC45H
Ordering example of an HC45H with i = 9.8, H1 M22 x 1.5 and H2 3/4-16 UNF, DV incorporated and BSPP connections: HC45H – 9.8 – B – 11
Attention note!
Valve pre-setting is required, please specify when ordering the intensifier.
High-pressure adapter is required, please specify ordering code – see high-pressure adapter table.
High-pressure adapters will be factory mounted.
Model
- HC45H
Intensification, i
- Select factor
- See flow rate table
Model version
- Select type
- A = without DV
- B = with DV
Connections
- See table below
| Ordering code | IN / R | H1 | H2 |
|---|---|---|---|
| HC45H-___-__-11 | 3/8" BSPP | M22 x 1.5 | - |
| HC45H-___-__-12 | 3/8" BSPP | M22 x 1.5 | 3/4-16 UNF |
Max. tightening torque
| IN / R | H1 | H2 | |
|---|---|---|---|
| 3/8" BSPP | M22x1.5 | 3/4-16 UNF | |
| with steel washer | 6.0 da/Nm | 10.0 da/Nm | 6.8 da/Nm |
| with cutting edge | 6.0 da/Nm | 10.0 da/Nm | 6.8 da/Nm |
