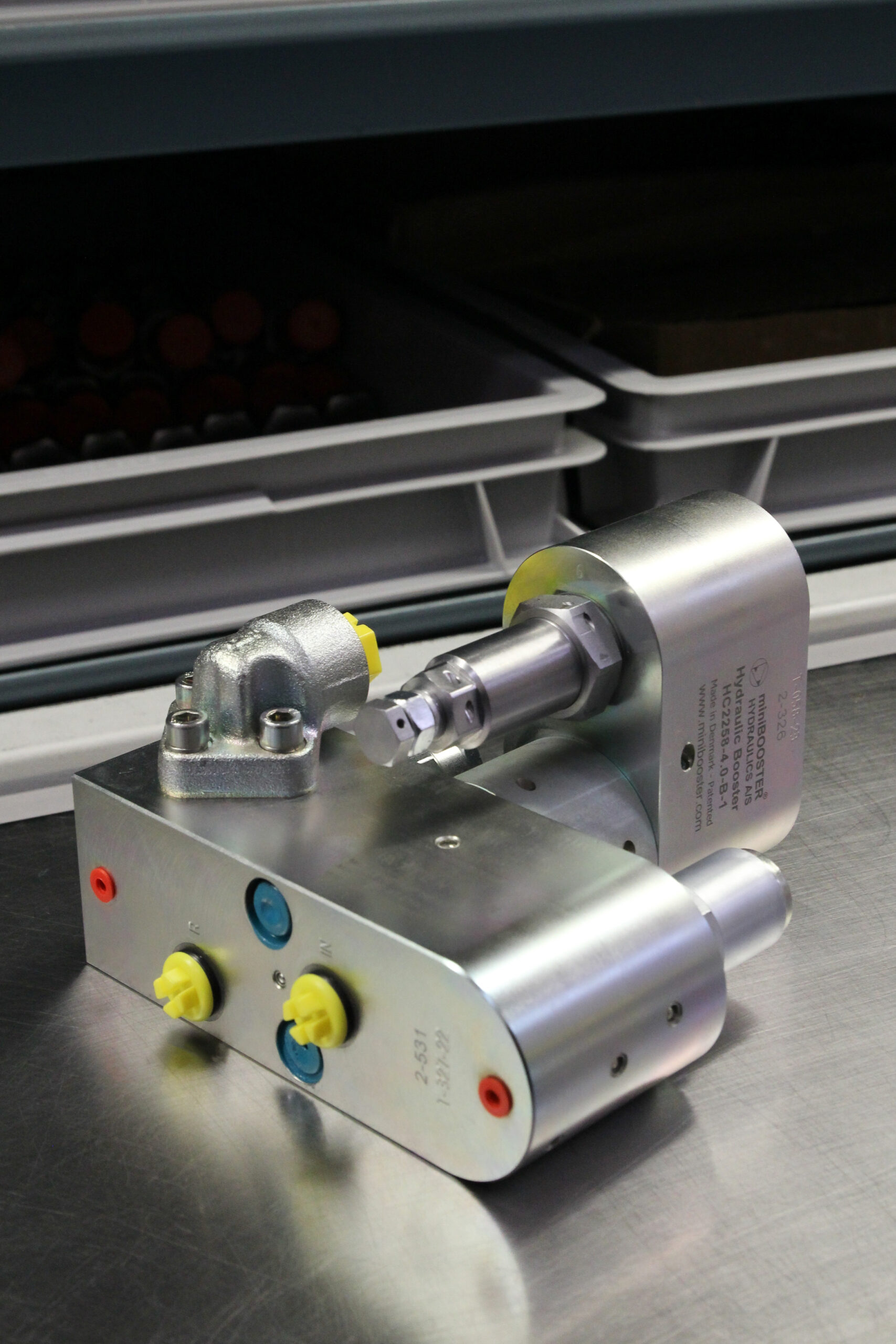

HC2258
Data:
HC2258 versions: 15 different intensification factors
PIN: 20 – 207 bar
PH: 800 bar maximum
PRETURN: As low as possible (return pressure to tank)
POUTLET: PH = (PIN – PRETURN) x intensification factor
Mounting: Inline tube
Weight: 5.5 kg.
Description
The HC2258 is a compact unit weighing 5.5 kg. It is ideal for use in a variety of applications where building and maintaining high pressure is required.
The HC2258 incorporates a counterbalance valve, a pressure reducing valve (PRV) and a high pressure relief valve.
The integrated counterbalance valve allows fast-forward movement of a cylinder by directing the full inlet flow to pass directly through the booster section until the set pressure has been reached. Then the counterbalance valve opens, and the booster starts oscillating.
The integrated pressure reducing valve controls inlet pressure to the booster section. It protects both booster and high-pressure tool against too high pressure. It secures a stable high pressure regardless of changes in the tank line pressure.
The adjustable pressure relief valve controls the maximum allowable pressure the system can output, allowing the booster to go for a higher end pressure producing flow at the decided pressure.
The HC2258 raises supplied pressure to a higher outlet pressure and automatically compensates for oil consumption to maintain the high pressure. Adjustment of the outlet pressure is carried out by varying the supplied pressure.
An optional orifice can be mounted in both IN- and R-ports of the booster to prevent overspeeding.
Flow rates
| Intensification factor i | Max. intensified outlet flow l/min | Max. inlet flow l/min |
|---|---|---|
| 1.2 | 3.5 | 8.0 |
| 1.5 | 4.2 | 12.0 |
| 2.0 | 3.2 | 12.0 |
| 2.2 | 2.9 | 12.0 |
| 2.5 | 2.7 | 13.0 |
| 2.8 | 2.5 | 13.0 |
| 3.2 | 2.5 | 15.0 |
| 4.0 | 2.0 | 14.0 |
| 5.0 | 1.6 | 14.0 |
| 6.6 | 1.3 | 13.0 |
| 9.0 | 0.9 | 13.0 |
| 13.0 | 0.6 | 12.0 |
| 16.0 | 0.5 | 12.0 |
| 20.0 | 0.3 | 12.0 |
| 25.0 | 0.2 | 12.0 |
Functions
The basic operation is illustrated in the function diagram. Oil is fed through the directional valve (in the customer system) to the IN port, flowing freely through the PRV (pos. 5) and the internal check valves to the high-pressure side H. In this condition maximum flow through the booster is achieved giving a fast-forward function.
When pump pressure is reached on the high-pressure side H, the internal check valves will close. The end pressure will be achieved by the oscillating pump unit OP. The unit will automatically stall when end pressure on the high-pressure side H is reached. If a pressure drop on the high-pressure side exists due to consumption or leakage, the OP valve will automatically operate to maintain the end pressure.

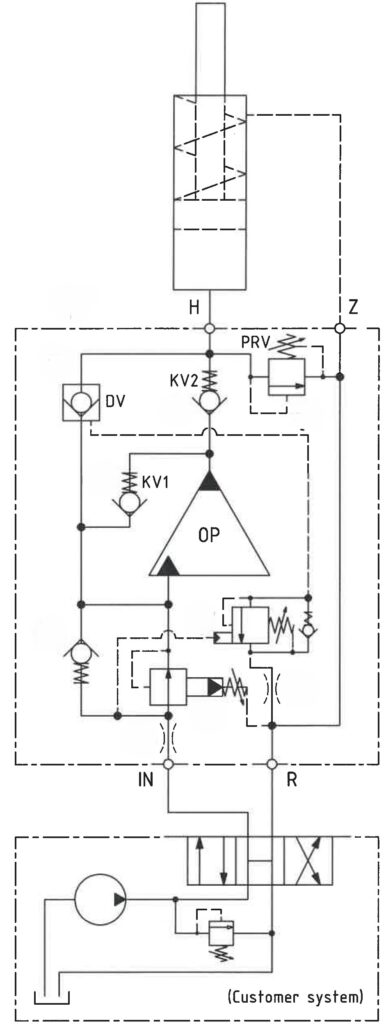

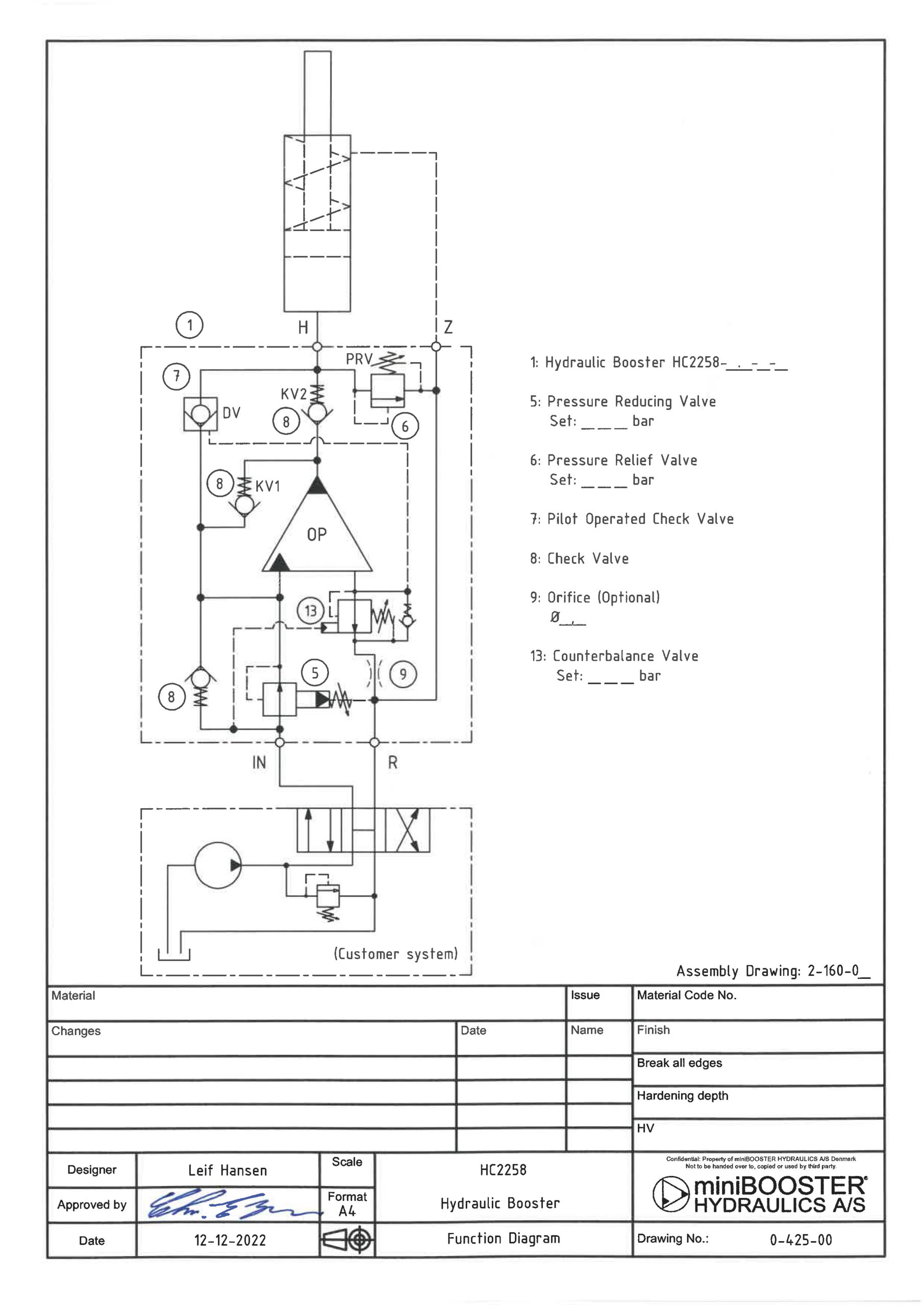

Function diagram
0-425-01
Dimensions
Dimension drawing 2-160-00
Connection types
| Connection | IN / R | H1 | Z |
|---|---|---|---|
| 1 | 1/4" BSPP | 1/4" BSPP | 3/8" BSPP |
Fluids and materials
Additional information is available on the website under Products → General specifications.
Ordering an HC2258
Ordering example of an HC2258 with i = 4.0, DV incorporated and BSPP connections: HC2258 – 4.0 – B – 1
Attention note!
Valve pre-settings are required, please specify when ordering the intensifier.
Model
- HC2258
Intensification, i
- Select factor
- See flow rate table
Model version
- Select type
- A = without DV
- B = with DV
Connections
- See table below
| Ordering code | IN / R | Z | H1 |
|---|---|---|---|
| HC2258-___-__-1 | 1/4" BSPP | 3/8" BSPP | 1/4" BSPP |
Max. tightening torque BSPP
| IN / R | Z | H1 | |
|---|---|---|---|
| 1/4" BSPP | 3/8" BSPP | 1/4" BSPP | |
| with steel washer | 4.0 da/Nm | 6.0 da/Nm | 4.0 da/Nm |
| with cutting edge | 4.0 da/Nm | 6.0 da/Nm | 4.0 da/Nm |
