Functions

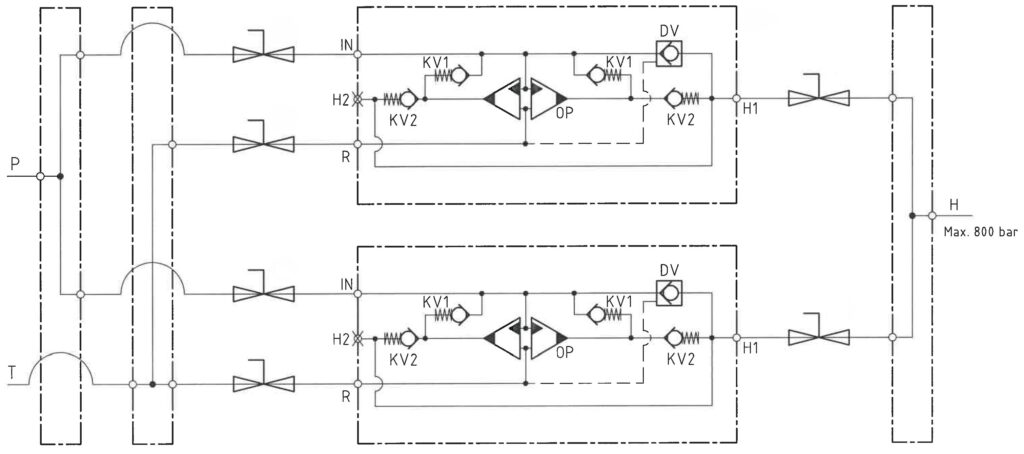

The basic operation is illustrated in the function diagram. Oil is fed through the directional valve CV to the IN port, flowing freely through the check valves 2x KV1, 2x KV2 and DV to the high-pressure side H. In this condition maximum flow through the booster is achieved giving a fast-forward function.

When pump pressure is reached on the high-pressure side H, valves KV1, KV2 and DV will close. The end pressure will be achieved by the oscillating pump units OP1 and OP2 by turns. The unit will automatically stall when end pressure on high-pressure side H is reached. If a pressure drop on the high-pressure side exists due to consumption or leakage, the OP1 and OP2 units will automatically operate to maintain the end pressure. It is possible to change the high-pressure connection H to the opposite end of the booster.

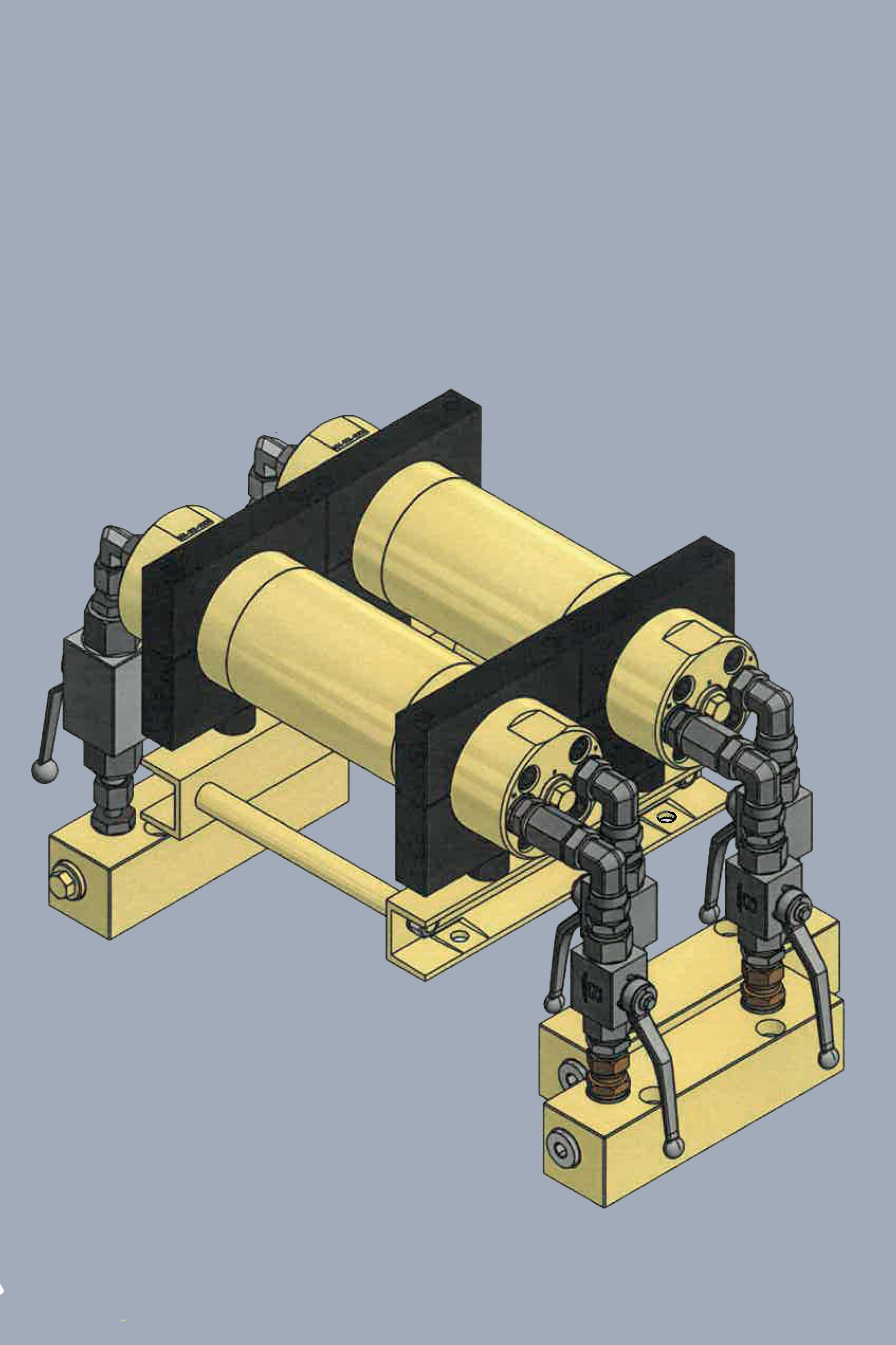

Ordering an P2-HC6D

Ordering example of an P2-HC6D with i = 4.0, DV incorporated and BSPP connections: P2-HC6D – 4.0 – B – 1

Attention note!
The G-model is available in 2 variants, when ordering please specify accordingly:

• Dynamic – low hysteresis: Ordering example of an P2-HC6D with i = 4.0 RV incorporated and BSPP connections: P2-HC6D – 4.0 – G – 1
• Fail safe – high hysteresis: The RV valve opening ratio is to be determined on individual basis. Contact our technical support. Ordering example of an P2-HC6D with i = 4.0 RV with opening ratio x.x incorporated and BSPP connections: P2-HC6D – 4.0 – G – x.x – 1
